Draper Access E [NTSC 4:3] ceiling-recessed Electric Screen 210" (126" x 168") 139024EC

Introducing the Draper Access E [NTSC 4:3] ceiling-recessed Electric Screen, the ultimate solution for immersive visual experiences. Designed to deliver breathtaking presentations, dynamic videos, and captivating movie screenings, this screen sets a new standard in large-scale display technology.

The Draper Access E boasts an impressive screen size of 210 inches, providing a vast canvas for your content. With precise dimensions of 126 inches in height and 168 inches in width, it offers an optimal aspect ratio of NTSC 4:3, ensuring exceptional clarity and detail.

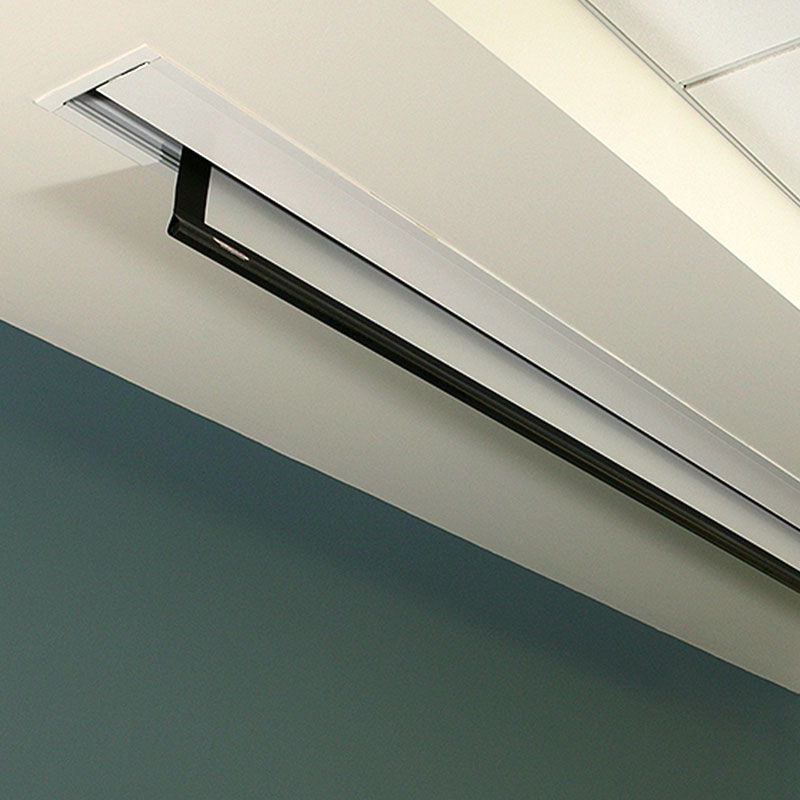

One of the key features of the Draper Access E is its ceiling-recessed design. By seamlessly integrating into the ceiling, it remains discreetly hidden when not in use, preserving the aesthetics of your space and offering a clean, clutter-free environment. When activated, the screen elegantly descends into position, instantly transforming any room into a captivating visual hub.

Powered by an efficient electric motor, the screen's operation is smooth and silent, providing a seamless transition between screen configurations. Whether you're presenting in a corporate boardroom, hosting a movie night at home, or delivering a captivating lecture in an auditorium, the Draper Access E guarantees a professional and immersive viewing experience.

The screen material used in the Draper Access E ensures excellent image reproduction. It features a high-quality projection surface that enhances color accuracy, contrast, and brightness, delivering vibrant and lifelike visuals. The material is also resistant to mildew, flame, and surface discoloration, ensuring long-lasting performance.

Installation and control of the Draper Access E are straightforward. The included mounting brackets facilitate a hassle-free setup process, and the screen can be easily operated via the included remote control or integrated into existing control systems for seamless automation.

Upgrade your visual presentations and create unforgettable movie nights with the Draper Access E [NTSC 4:3] ceiling-recessed Electric Screen. With its impressive size, superior image quality, and convenient operation, this screen is the perfect addition to any professional or entertainment setting, providing an exceptional viewing experience that will leave a lasting impression on your audience.

Product Specs

•  Case dimensions are 7-3/8" high x 8-1/16" deep (19 cm x 20 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.

•  Maximum image width up to 16' (488 cm) wide, depending on surface selection.

•  The standard Access is a good alternative whenever the above-ceiling space permits. Access Fit is recommended when space is at a premium.

•  Adjustable or removable hoisting brackets included for easy lifting during installation.

•  Black drop standard, depending on screen size. Extra drop above image area available upon request. Extra drop may increase case size.

•  Sliding brackets on top of the case allow for adjustments when mounting.

•  Sliding brackets inside case accommodate different size screens.

•  Bottom closure panel detachable or hangs in place with “T” bracket to provide accessibility for service or maintenance.

•  Quick-connect wiring allows for early installation of the case with the addition of the screen later.

•  Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options are available.

•  Low voltage, video interface or other controls can be built into housing for access from below ceiling.

•  White case standard, black available upon request.

•  Custom sizes available.

•  UL Listed.
