Draper Acumen® V [CinemaScope 2.39:1] Quiet Motor Electric Screen 90" (35" x 83 1/2") 154115Q

Introducing the Draper Acumen® V [CinemaScope 2.39:1] Quiet Motor Electric Screen 90" (35" x 83 1/2"), the perfect solution for creating an immersive cinematic experience in your home or professional setting. Designed with precision and innovation, this motorized screen combines exceptional picture quality with quiet operation and user-friendly functionality.

With its CinemaScope 2.39:1 aspect ratio, the screen is optimized for widescreen presentations, allowing you to enjoy your favorite movies, TV shows, and presentations in their original format. The 90" diagonal size provides a generous viewing area, while the screen's dimensions of 35" x 83 1/2" ensure that you can accommodate a wide range of content without compromising on visual clarity.

The Acumen® V screen boasts a state-of-the-art quiet motor mechanism that operates smoothly and silently, eliminating distractions during your viewing experience. You can effortlessly raise or lower the screen with the touch of a button, thanks to the electric motor, which ensures precise and reliable performance every time.

Crafted with attention to detail, the screen features a high-quality material that enhances image brightness, color accuracy, and contrast. The surface is designed to minimize glare and provide wide viewing angles, ensuring that everyone in the room can enjoy a clear, vibrant picture from any seating position.

Installation is a breeze with the Acumen® V screen. It comes with a sleek and sturdy casing that can be easily mounted on the wall or ceiling, allowing for versatile placement options. The screen also includes a remote control, giving you convenient control over screen operation from anywhere in the room.

Whether you're setting up a home theater, a conference room, or a professional presentation space, the Draper Acumen® V [CinemaScope 2.39:1] Quiet Motor Electric Screen 90" (35" x 83 1/2") delivers exceptional performance, reliability, and style. Immerse yourself in stunning visuals and experience entertainment like never before with this top-of-the-line projection screen.

When delivering the award, Projector Central had these kind words to say about Draper^® and Acumen^®:

Before designing its new line of surface-mount, roll-up screens, Draper^® listened to the market and saw three key demands: for flexibility in screen materials to accommodate different lighting conditions, for motorized options that don't require nearby power, and for ever-increasing size. Acumen^® hits all the buttons, accommodating all of the company's free-hanging and tab-tensioned materials (including its premium TecVision^® line of traditional and ALR surfaces), providing motorized options that include a battery-rechargeable version that goes 500 cycles between charges, and hitting screen sizes up to 18 feet wide. The simple but elegant, durable extruded aluminum casing was also designed with ease of installation and access for maintenance in mind.

Product Specs

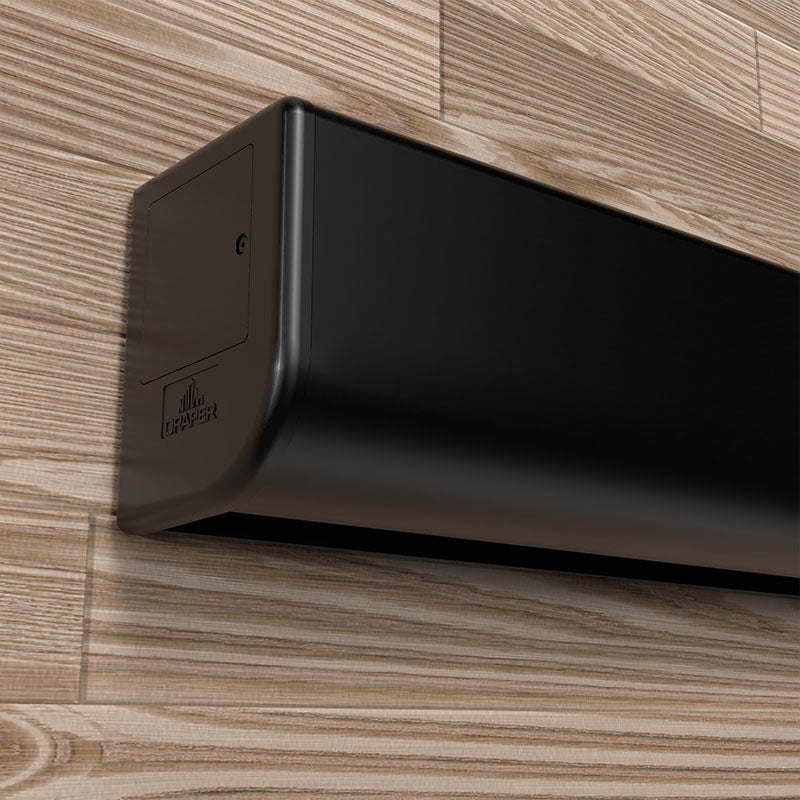

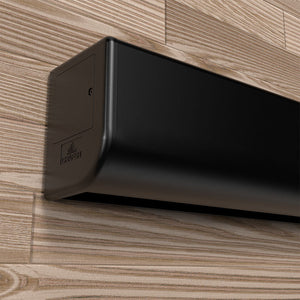

•  Case dimensions: 7-1/8” h x 5-7/8” d (181 mm x 149 mm). Extruded aluminum housing with white powder coated or optional black finish.

•  Maximum image width up to 10’ (305 cm) wide.

•  Full line of Draper^® viewing surfaces including TecVision^® are available for the Acumen^® V.

•  Rear projection surfaces available.

•  Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.

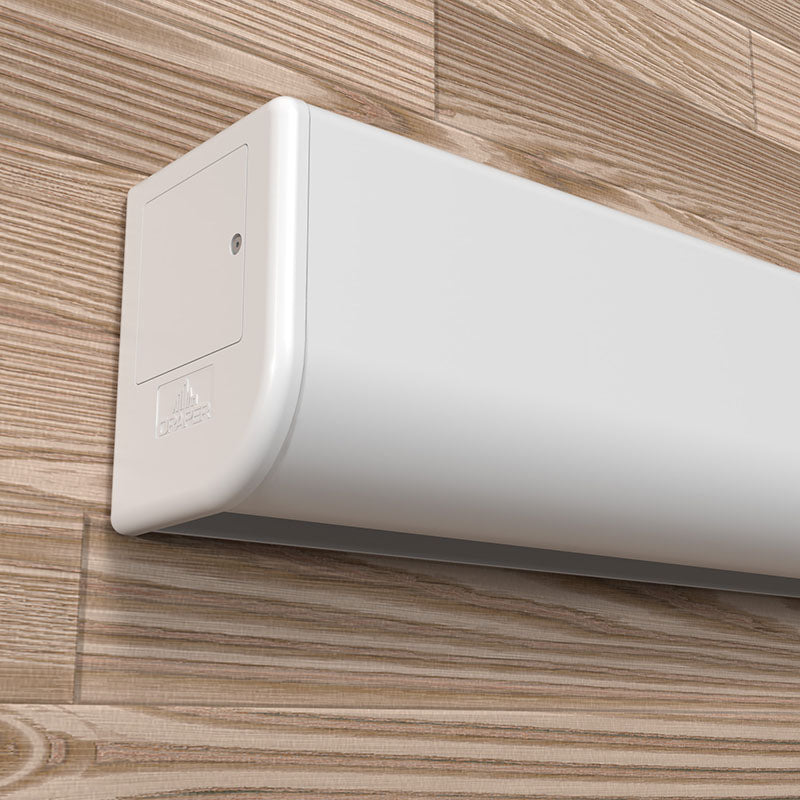

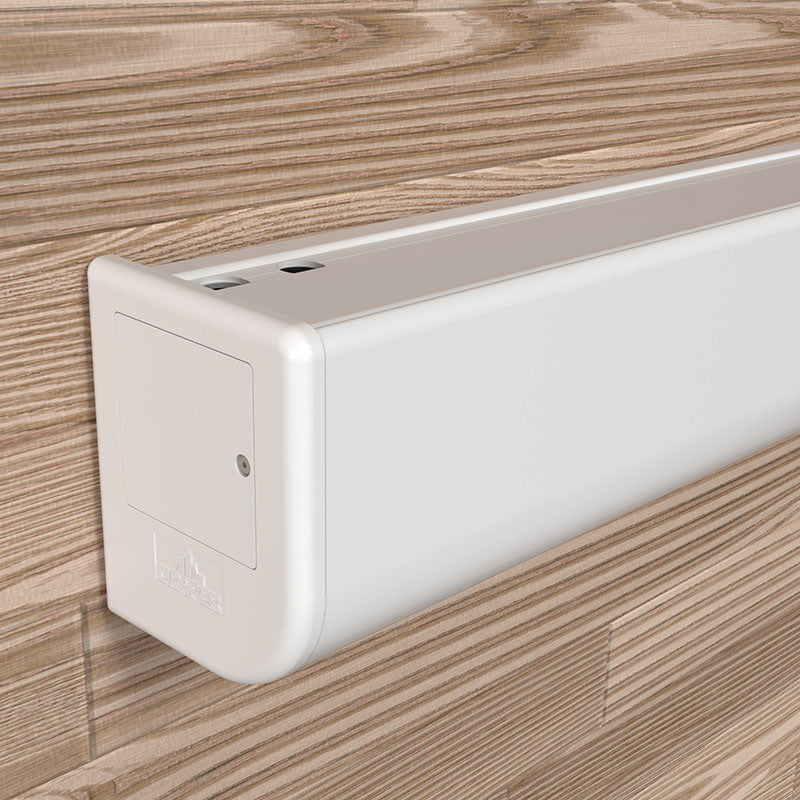

•  Streamlined extruded aluminum case finished in white powder coat (standard), black available upon request.

•  Fascia removable for easy access to roller and motor for service.

•  Ships with built-in low-voltage controller and wall switch (standard). Other control options are available.

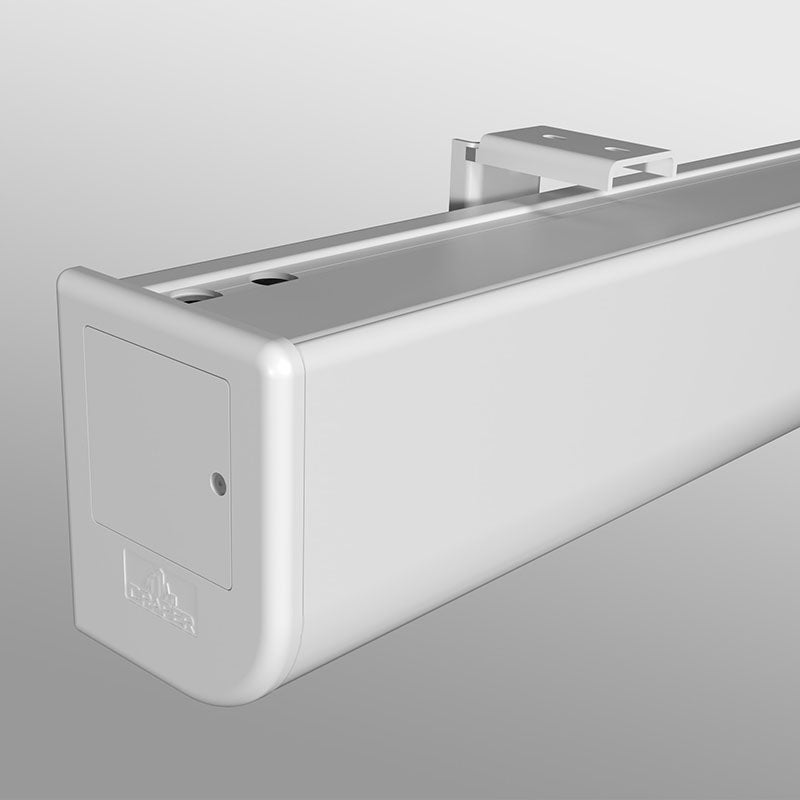

•  Includes both floating mounting brackets and ceiling suspension brackets.

•  Custom sizes available.

•  UL Listed.

•  Seven-year warranty. *USA and Canada only.

Supporting Documents

Catalog Page

110V - Installation Instructions

220V - Installation Instructions

CAD

CSI 3-Part Specifications

Care and Maintenance Instructions

Warranty
